Listado de productos con imagen
PRODUCTOS->
->BARRA DE TIRO (63 X 30)

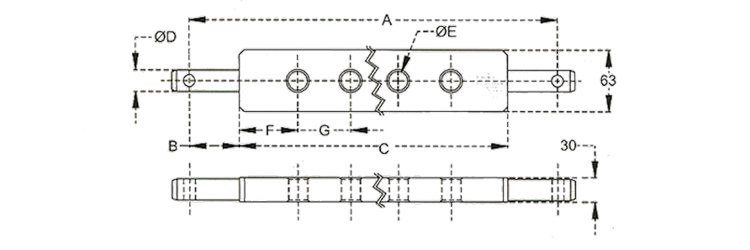

BARRA DE TIRO (63 X 30)
DESCRIPCION DE PRODUCTO
INGLES
FRANCES
REFERENCIA
NUMERO DE AGUJEROS
DIMENSION "A" mm
DIMENSION "B" mm
DIMENSION "C" mm
DIAMETRO "D" mm
DIAMETRO "E" mm
DIMENSION "F" mm
DIMENSION "G" mm
PESO Kgs
NOTA
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0721
3
440
55
330
22
20
110
55
5
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0722
5
505
52.5
400
22
19.5
68
66
5.86
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0723
5
510
53
404
22
20
94
54
5.9
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0724
5
540
70
400
28
22
70
65
6.18
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0725
5
540
55
430
28
20
75
70
6.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0726
5
570
85
400
28
22
70
65
6.32
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0727
7
510
55
400
22
20
35
55
5.66
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0728
7
550
53
444
22
20
113
54
6.3
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0729
7
613
51
511
22
19
85
57
7.4
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0730
7
648
49
550
22
20
113
54
7.9
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0731
7
680
51
578
22
20
115
58
8.3
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0732
7
683
49
585
22
20
82.5
70
8.4
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0733
7
962
60
842
28
25
181
80
12.3
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0734
7
962
60
842
28
28
181
80
12
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0735
8
685
58
569
22
22
80
75
7.95
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0736
9
620
50
520
28
28
72
47
6.8
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0737
9
620
50
520
22
22
72
47
7.1
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0738
9
622
50
522
22
36
71
47.5
5.75
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0739
9
650
65
520
22
26
60
50
6.84
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0740
9
660
70
520
28
22
70
65
7.5
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0741
9
720
58
604
22
22
70
58
8.4
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0742
9
750
55
640
22
19.5
64
64
9
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0743
9
758
49
660
22
20
114
54
9.2800729371429
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0744
9
762
51
660
22
20
114
54
9.3
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0745
9
770
55
660
22
20
110
55
9.31
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0746
9
770
55
660
28
20
110
55
9.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0747
9
780
60
660
28
20
114
54
9.63
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0748
9
796
57.5
681
22
22.2
101
60
9.5
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0749
9
800
58
684
22
22
82
65
9.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0750
9
800
70
660
28
22
114
54
9.58
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0751
9
800
58
684
22
22
82
65
9.5
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0752
9
800
70
660
28
22
70
65
9.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0753
9
800
58
684
22
22
126
54
9.55
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0754
9
872
61
750
28
20
159
54
10.970408605714
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0755
9
900
70
760
28
22
100
70
11
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0756
9
937
60
817
28
26
88.5
80
11.5
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0757
11
764
52
660
22
22
60
54
8.9
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0758
11
765
53
659
22
20
60
54
9
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0759
11
766
60
646
28
20
60
52.6
9.2
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0760
11
766
53
660
22
20
60
54
9.1
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0761
11
774
57
660
22
19
75
51
9.2
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0762
11
774
57
660
22
22
75
51
8.96
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0763
11
780
60
660
28
22
60
54
9.25
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0764
11
780
60
660
22
20
60
54
9.2
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0765
11
780
60
660
28
20
60
54
9.45
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0766
11
800
52
696
22
22
78
54
9.46
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0767
11
800
60
680
28.4
22
70
54
9.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0768
11
920
60
800
28
22
100
60
11.33
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0769
11
930
55
820
28
22
85
65
11.6
BARRA DE TIRO (63 X 30)
DRAW BARS (63 X 30)
BARRES A TROUS (63 X 30)
DB0770
11
960
55
850
28
22
100
65
12
