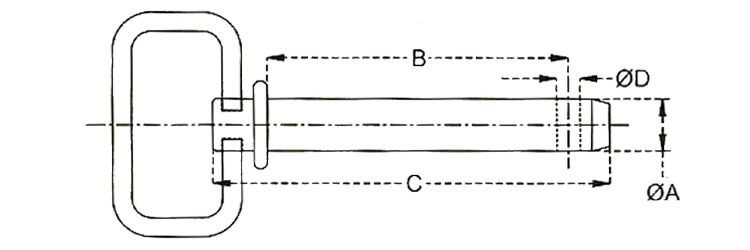

PERNO ASA CERRADA CON PASADOR

REFERENCIA	DIAMETRO A mm	DIMENSION B mm	DIMENSION C mm	DIAMETRO D mm	PESO Kgs	NOTA
HPHP0901	9.5	104	141	3	0'091
HPHP0902	9.5	110	147	3	0'094
HPHP0903	12.7	92	127	4	0'152
HPHP0904	12.7	105	142	3	0'158
HPHP0905	12.7	110	147	4	0'172
HPHP0906	12.7	148	185	3	0'201
HPHP0907	12.7	162	199	4	0'224
HPHP0908	15.9	105	142	3.5	0'250
HPHP0909	15.9	105	136	4	0'244
HPHP0910	15.9	149	186	3.5	0'319
HPHP0911	16	110	147	4	0'264
HPHP0912	16	162	199	4	0'346
HPHP0913	19	98	130	4.5	0'332
HPHP0914	19	105	142	5	0'373
HPHP0915	19	110	147	4.5	0'370
HPHP0916	19	157	194	4.5	0'474
HPHP0917	19	162	203	4.5	0'494
HPHP0918	22	110	147	5	0'503
HPHP0919	22	157	194	5	0'643
HPHP0920	22	162	199	5	0'658
HPHP0921	22	181	218	5	0'715
HPHP0922	25	103	128	5	0'566
HPHP0923	25	110	147	6	0'660
HPHP0924	25	110	147	5.5	0'654
HPHP0925	25	157	194	6	0'842
HPHP0926	25	162	199	6	0'861
HPHP0927	25	181	214	6	0'919
HPHP0928	25	183	220	6	0'942
HPHP0929	25.4	118	155	6	0'712
HPHP0930	28	183	220	7	1'253
HPHP0931	28.6	162	199	6.5	1'155
HPHP0932	28.6	181	118	6.5	0'746
HPHP0933	31.75	162	199	7	1'440
HPHP0934	32	187	220	7	1'593
