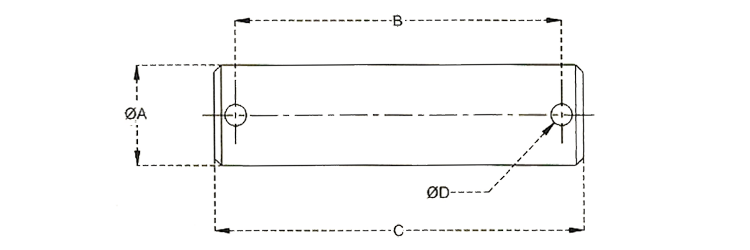

PERNO PARA BRAZOS ELEVADORES

REFERENCIA	DIAMETRO "A" mm	DIMENSION "B" mm	DIMENSION "C" mm	DIAMETRO "D" mm	PESO Kgs	NOTA
ALAP0501	18	52	64	6	0'120
ALAP0502	18	62	74	6	0'138
ALAP0503	18	72	84	6	0'154
ALAP0504	18	82	94	6	0'180
ALAP0505	20	58	71	6	0'170
ALAP0506	20	68	81	6	0'195
ALAP0507	22	52	64	6	0'180
ALAP0508	24	77	90	6	0'360
ALAP0509	24	91	104	6	0'354
ALAP0510	26	57	66	6	0'270
ALAP0511	28	91	104	6	0'430
