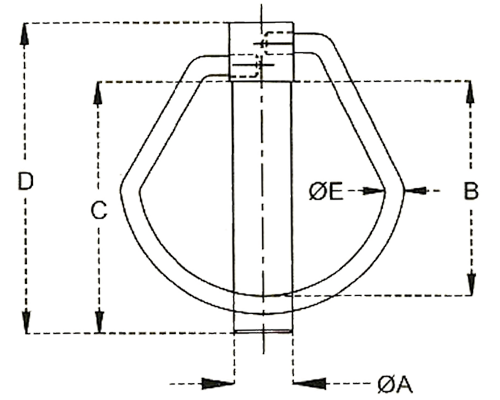

PASADOR CON ANILLA ABATIBLE-2

REFERENCIA	DIAMETRO A mm	DIMENSION B mm	DIMENSION C mm	DIMENSION D mm	DIAMETRO E mm	PESO Kgs	NOTA
LCPP1101	4.5	23	28.5	35	2	0'080
LCPP1102	4.5	24	38	44	2	0'085
LCPP1103	4.5	30	38	44	2	0'085
LCPP1104	5	35	39.5	46	2.5	0'090
LCPP1105	6	32	40	48	2.4	0'095
LCPP1106	6	36	46.5	54	3	0'100
LCPP1107	7	40	45	54	2.3	0'105
LCPP1108	8	40	46	56	3.5	0'110
LCPP1109	9	40	45	56	3.5	0'115
LCPP1110	10	40	46	58	3.5	0'120
LCPP1111	11	40	46	58	3.5	0'125
LCPP1112	11	48	53	78	4	0'130
LCPP1113	15	56.5	62	84.5	4	0'155
