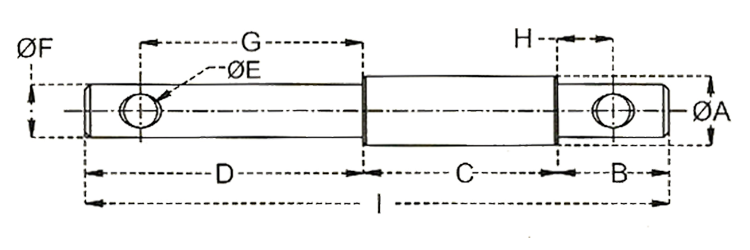

REFERENCIA | DIAMETRO A mm | DIMENSION B mm | DIMENSION C mm | DIMENSION D mm | DIAMETRO E mm | DIAMETRO F mm | DIMENSION G mm | DIMENSION H mm | DIMENSION I mm | PESO Kgs | NOTA |
IMPD0811 | 25 | 40 | 70 | 100 | 12 | 19 | 80 | 20 | 210 | 0'548 | |
IMPD0812 | 25 | 38 | 96 | 78 | 12 | 19 | 62 | 22 | 212 | 0'595 | |
IMPD0813 | 25 | 26 | 66 | 78 | 6.5 | 19 | 70 | 18 | 170 | 0'476 | |
IMPD0814 | 28 | 35 | 75 | 90 | 12 | 22 | 75 | 20 | 200 | 0'697 | |
IMPD0815 | 28 | 40 | 70 | 100 | 12 | 22 | 80 | 20 | 210 | 0'718 | |
IMPD0816 | 28 | 40 | 90 | 100 | 12 | 22 | 80 | 20 | 230 | 0'814 | |
IMPD0817 | 28.6 | 40 | 89 | 100 | 12 | 22.2 | 80 | 20 | 220 | 0'790 | |
IMPD0818 | 32 | 40 | 115 | 95 | 12 | 25 | 81 | 26 | 250 | 1'200 | |
IMPD0819 | 36.5 | 36 | 150 | 91 | 12 | 28 | 81 | 26 | 277 | 1'800 | |
IMPD0820 | 36.5 | 45 | 150 | 95 | 12 | 28 | 80 | 28 | 290 | 1'860 |
