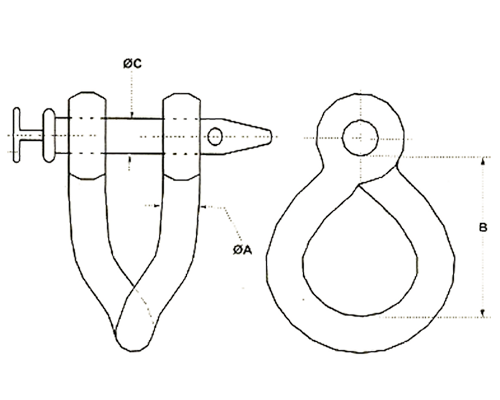

GRILLETE REVIRADO

REFERENCIA	DIAMETRO "A" mm	DIMENSION "B" mm	DIAMETRO "C" mm	PESO Kgs	NOTA
SHT0601	15.87	76.20	12.70	0'590
SHT0602	19.05	88.90	15.87	0'970
SHT0603	22.22	76.20	19.05	1'300
SHT0604	22.22	98.40	19.05	1'650
SHT0605	23.81	107.95	22.22	2'100
SHT0606	25.40	127.00	25.40	2'520
