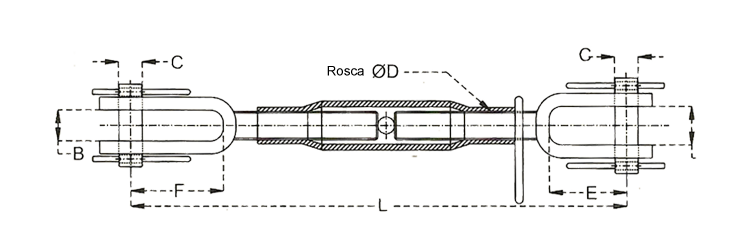

TENSOR LATERAL AJUSTABLE

REFERENCIA	DIMENSION "A" mm	DIMENSION "B" mm	DIAMETRO "C" mm	ROSCA "D" mm	DIMENSION "E" mm	DIMENSION "F" mm	DIMENSION MINIMA "L" mm	DIMENSION MAXIMA "L" mm	PESO Kgs	NOTA
ALA0501	30	24	18	22X2.5	60	72	380	530	3'345
ALA0502	40	24	18	24X3	70	72	450	600	3'588
ALA0503	40	24	18	27X3	70	72	500	650	4'015
