PERNO ENGANCHE APEROS AJUSTABLES

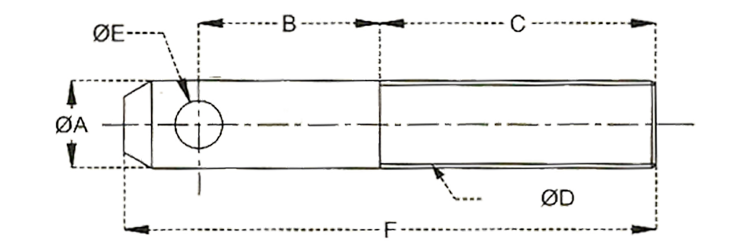

REFERENCIA	DIAMETRO "A" mm	DIMENSION "B" mm	DIMENSION "C" mm	ROSCA "D" pulgadas	DIAMETRO "E" mm	DIMENSION "F" mm	PESO Kgs	NOTA
LAPA0401	16	33	56	5/8"UNF	7	102	0'450
LAPA0402	22	46	70	7/8"UNF	12	135	0'600
LAPA0403	22	60	88	7/8"UNF	12	159	0'700
LAPA0404	28.6	50.8	62	7/8"UNF	12	133	0'675
LAPA0405	28.6	60	85	1-1/8"UNF	12	159	0'850
LAPA0411	28.6	60	73	1"UNC	12	152.4	0'820
LAPA0412	28.6	60	76	1-1/8"UNC	12	152.4	0'820
