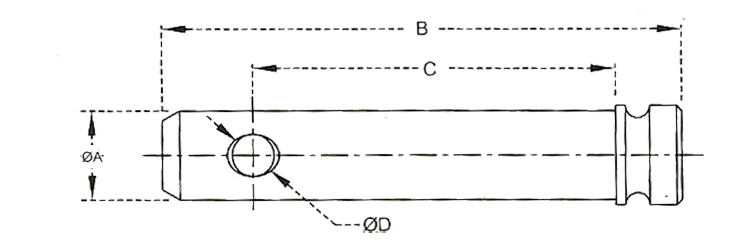

PERNO TERCER PUNTO CON CABEZA

REFERENCIA	DIAMETRO A mm	DIMENION B mm	DIMENSION C mm	DIAMETRO D mm	PESO Kgs	NOTA
TLP0201	15.9	113	76	8.3	0'220
TLP0202	15.9	112.7	82.2	8.3	0'235
TLP0203	19	90	52	12	0'240
TLP0204	19	90	57	12	0'240
TLP0205	19	95	65	10	0'245
TLP0206	19	113	76	12	0'265
TLP0207	19	117	85	10	0'270
TLP0208	19	123	86	12	0'275
TLP0209	19	125	95	12	0'280
TLP0210	19	127	92	12	0'295
TLP0211	19	133	95	12	0'300
TLP0212	19	135	102.5	8.5	0'305
TLP0213	19	135	105	10	0'305
TLP0214	19	138	103	12	0'310
TLP0215	19	150	116	12	0'330
TLP0216	19	155	125	10	0'340
TLP0217	19	164	127	12	0'355
TLP0218	25	132	95	12	0'535
TLP0219	25	136	105	11	0'540
TLP0220	25	141	105	12	0'550
TLP0221	25	145	110	11	0'555
TLP0222	25	156	125	11	0'560
TLP0223	25	165	126	12	0'580
TLP0224	25	180	136	12	0'610
TLP0225	25	178	145	11	0'540
TLP0226	25.4	123	86	12	0'520
TLP0227	25.4	135	95	12	0'535
TLP0228	25.4	148	110	12	0'555
TLP0229	25.4	154	116	12	0'565
TLP0230	25.4	180	142	12	0'630
TLP0231	28	151	103	12	0'700
TLP0232	19	175	145	10	0'380
TLP0233	19	197	165	10	0'400
TLP0234	20	117	83	12	0'290
TLP0235	22	78	39	12	0'425
TLP0236	22	114	76	12	0'515
TLP0237	22	114	78	8.3	0'515
TLP0238	22	118	85	11	0'520
TLP0239	22	132	94	12	0'545
TLP0240	22	136	105	12	0'550
TLP0241	22	140	110	12	0'555
TLP0242	22	158	125	11	0'580
TLP0243	22	190	149	12	0'615
TLP0244	22	178	145	11	0'600
TLP0245	22	221	184	12	0'650
TLP0246	25	115	76	12	0'655
TLP0247	25	136	85	11	0'710
TLP0248	28	156	125	12	0'765
TLP0249	28	165	130	12	0'800
TLP0250	28	178	145	12	0'830
TLP0251	28.6	133	95	12	0'770
TLP0252	28.6	197	159	12	0'900
TLP0253	31	165	125	12	0'987
TLP0254	31.7	165.1	118.7	12	1'030
TLP0255	32	152	105	12	1'000
TLP0256	32	154	105	12	1'010
TLP0257	32	164	125	12	1'070
TLP0258	32	175	136	12	1'100
