ROTULA CUELLO REDONDO SOLDAR

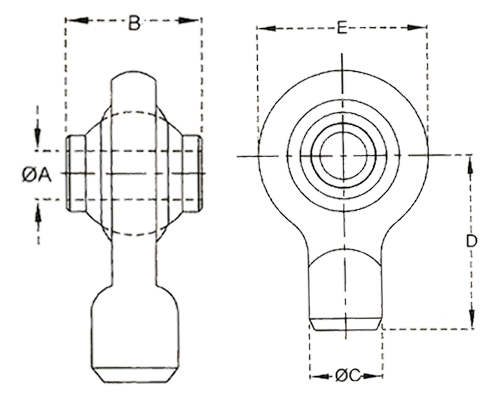

REFERENCIA	DIAMETRO A mm	DIMENSION B mm	DIAMETRO C mm	DIMENSION D mm	DIMENSION E mm	PESO Kgs	NOTA
WETL0201	19	44	25.4	55	54	0'440
WETL0202	25.4	51	30	73	76	0'730
WETL0203	25.4	51	36	78	80	0'825
WETL0204	32	51	36	85	100	0'850
WETL0205	19	44	25	51.5	53	0'420
WETL0206	25.4	51	38	90	90	0'830
WETL0207	25.4	51	31	71.5	75	0'720
WETL0208	25.4	51	40	107	88	1'100
WETL0209	25.4	51	40	85	90	0'820
