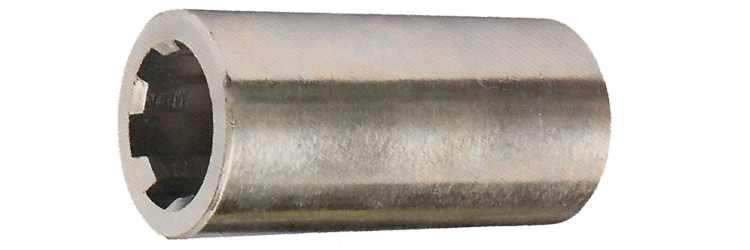

MANGUITO P.T.O

REFERENCIA	CONEXIÓN HEMBRA PULGADAS	DIAMETRO EXTERIOR mm	DIMENSION TOTAL mm	PESO Kgs	NOTA
PTC2521	1-3/8"x6	48	80	0'600
PTC2522	1-3/8"x6	48	100	0'740
PTC2523	1-3/8"x6	48	130	0'370
PTC2524	1-3/8"x6	48	150	1'150
PTC2525	1-3/4"x6	60	70	0'830
PTC2526	1-3/4"x6	60	100	1'100
PTC2527	1-3/4"x6	60	130	1'550
PTC2528	13 UNI 221 13x16x3.5mm x 6	28	40	0'135
PTC2529	16 UNI 221 16x20x4mm x 6	28	50	0'135
PTC2530	19x22x3.5mmx10	32	40	0'140
PTC2531	21 UNI 221 21x25x5mm x 6	38	60	0'325
PTC2532	23 UNI 221 23x28x6mm x 6	38	60	0'280
PTC2533	26 UNI 221 26x30x6mm x 6	42	60	0'350
PTC2534	DIN 5482 20x17mm x 12	28	40	0'105
