ANILLA DE ELEVACION HEMBRA

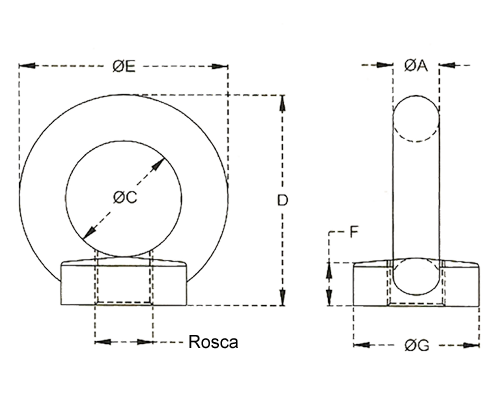

REFERENCIA	ROSCA mm	DIAMETRO "A" mm	DIAMETRO "C" mm	DIMENSION "D" mm	DIAMETRO "E" mm	DIMENSION "F" mm	DIAMETRO "G" mm	MAXIMO LIMITE DE CARGA Kgs	PESO Kgs	NOTA
LEN1801	M6X1	6	14	27	26	6	14	75	0'017
LEN1802	M8X1.25	8	20	36	36	8.5	20	140	0'050
LEN1803	M10X1.5	10	25	45	45	10	25	230	0'090
LEN1804	M12X1.75	12	30	53	54	11	30	340	0'160
LEN1805	M14X2	12	35	53	54	11	30	460	0'155
LEN1806	M16X2	14	35	62	63	13	35	700	0'240
LEN1807	M18X2.5	14	40	62	63	13	35	850	0'235
LEN1808	M20X2.5	16	40	71	72	16	40	1200	0'360
LEN1809	M22X2.5	16	50	71	72	16	40	1500	0'355
LEN1810	M24X3	20	50	90	90	20	50	1800	0'720
LEN1811	M27X3	21	60	100	90	21	55	2700	0'845
LEN1812	M27X3.5	24	70	109	108	25	65	3600	1'320
LEN1813	M30X3.5	28	70	128	126	30	75	5100	2'080
LEN1814	M36X4	28	80	128	126	30	75	5100	2'080
LEN1815	M36FX3	32	80	147	144	35	85	7000	3'110
LEN1816	M42X4.5	32	90	147	144	35	85	7000	3'110
LEN1817	M48X5	38	90	168	166	40	100	8600	5'020
LEN1818	M48FX3	38	90	168	165	40	100	8600	5'020
