REJA REVERSIBLE

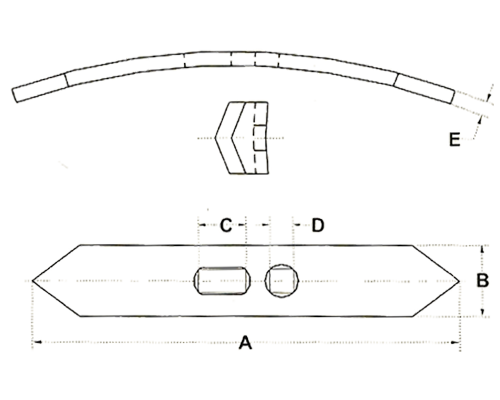

REFERENCIA	DIMENSION "A" mm	DIMENSION "B" mm	DIMENSION "C" mm	DIMENSION "D" mm	DIMENSION "E" mm	PESO Kgs	NOTA
CP1501	285	50.8	36	14	7	0'630
CP1502	269	50.8	36	12	6.3	0'580
CP1503	278	50.8	25	14	9.5	0'750
CP1504	212	63.5	25	14	9.5	0'780
CP1505	190	40		11.5	5	0'300
CP1506	285	51	32	10.5	9.5	0'780
CP1507	318	51	32	12.7	16	1'850
CP1508	312	40	32	12.7	12.7	1'200
CP1509	382	51	14	14	16	2'250
CP1510	408	51	32	14	16	2'400
CP1511	281	51	14.00	14	10	0'955
CP1512	272	63	25.2 x 12	25.2 x 12	8	0'835
