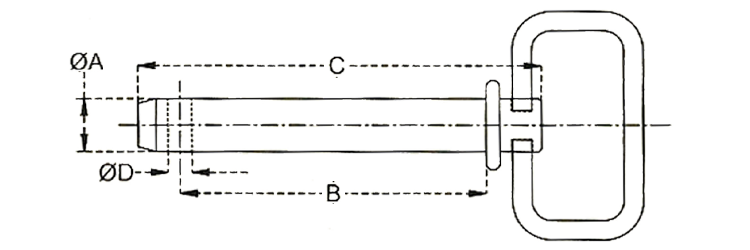

PERNO CON CADENA Y PASADOR

REFERENCIA	DIAMETRO A mm	DIMENSION B mm	DIMENSION C mm	DIAMETRO D mm	PESO Kgs	NOTA
HPLP0901	12.7	92.5	127	6.5	0'316
HPLP0902	12.7	111	146	6.5	0'335
HPLP0903	12.7	165	200	6.5	0'389
HPLP0904	15.9	103	136	6.5	0'408
HPLP0905	15.9	111	146	6.5	0'423
HPLP0906	15.9	165	200	6.5	0'508
HPLP0907	19	103	140	6.5	0'514
HPLP0908	19	110	147	6.5	0'530
HPLP0909	19	110	145	8	0'525
HPLP0910	19	115	153	12	0'543
HPLP0911	19	165	200	8.5	0'648
HPLP0912	19	165	204	6.5	0'657
HPLP0913	19	165	205	8	0'659
HPLP0914	22	115	153	6.5	0'667
HPLP0915	22	128.5	150	6.5	0'658
HPLP0916	22	165	200	6.5	0'807
HPLP0917	22	165	205	10	0'822
HPLP0918	25	165	205	10	1'009
HPLP0919	25	165	204	6.5	1'005
HPLP0920	25	189	227	12	1'094
HPLP0921	28	100	127	12	0'843
HPLP0922	28	120	160	10	1'002
HPLP0923	28	165	196	12	1'176
HPLP0924	28	165	204	6.5	1'215
HPLP0925	28	190.5	228	6.5	1'331
HPLP0926	28	165	200	6.5	1'196
HPLP0927	28	165	205	10	1'220
HPLP0928	28	189	228	12	1'331
HPLP0929	30	183	221	12	1'463
HPLP0930	31.75	162	204	6.5	1'511
HPLP0931	31.75	189	227	12	1'654
HPLP0932	32	165	200	10	1'507
HPLP0933	32	190.5	228	6.5	1'684
HPLP0934	35	189	227	12	1'971
HPLP0935	38	187	227	12	2'292
