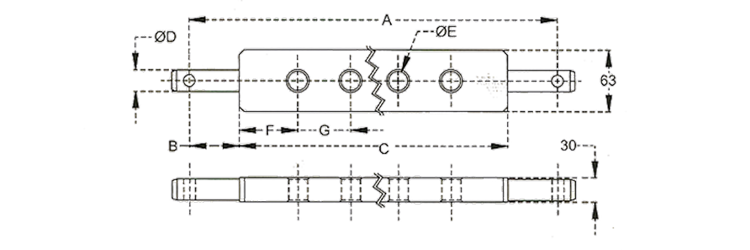

BARRA DE TIRO (63X30)

REFERENCIA	NUMERO DE AGUJEROS	DIMENSION "A" mm	DIMENSION "B" mm	DIMENSION "C" mm	DIAMETRO "D" mm	DIAMETRO "E" mm	DIMENSION "F" mm	DIMENSION "G" mm	PESO Kgs	NOTA
DB0721	3	440	55	330	22	20	110	55	5'000
DB0722	5	505	52.5	400	22	19.5	68	66	5'860
DB0723	5	510	53	404	22	20	94	54	5'900
DB0724	5	540	70	400	28	22	70	65	6'180
DB0725	5	540	55	430	28	20	75	70	6'600
DB0726	5	570	85	400	28	22	70	65	6'320
DB0727	7	510	55	400	22	20	35	55	5'660
DB0728	7	550	53	444	22	20	113	54	6'300
DB0729	7	613	51	511	22	19	85	57	7'400
DB0730	7	648	49	550	22	20	113	54	7'900
DB0731	7	680	51	578	22	20	115	58	8'300
DB0732	7	683	49	585	22	20	82.5	70	8'400
DB0733	7	962	60	842	28	25	181	80	12'300
DB0734	7	962	60	842	28	28	181	80	12'000
DB0735	8	685	58	569	22	22	80	75	7'950
DB0736	9	620	50	520	28	28	72	47	6'800
DB0737	9	620	50	520	22	22	72	47	7'100
DB0738	9	622	50	522	22	36	71	47.5	5'750
DB0739	9	650	65	520	22	26	60	50	6'840
DB0740	9	660	70	520	28	22	70	65	7'500
DB0741	9	720	58	604	22	22	70	58	8'400
DB0742	9	750	55	640	22	19.5	64	64	9'000
DB0743	9	758	49	660	22	20	114	54	9'280
DB0744	9	762	51	660	22	20	114	54	9'300
DB0745	9	770	55	660	22	20	110	55	9'310
DB0746	9	770	55	660	28	20	110	55	9'600
DB0747	9	780	60	660	28	20	114	54	9'630
DB0748	9	796	57.5	681	22	22.2	101	60	9'500
DB0749	9	800	58	684	22	22	82	65	9'600
DB0750	9	800	70	660	28	22	114	54	9'580
DB0751	9	800	58	684	22	22	82	65	9'500
DB0752	9	800	70	660	28	22	70	65	9'600
DB0753	9	800	58	684	22	22	126	54	9'550
DB0754	9	872	61	750	28	20	159	54	10'970
DB0755	9	900	70	760	28	22	100	70	11'000
DB0756	9	937	60	817	28	26	88.5	80	11'500
DB0757	11	764	52	660	22	22	60	54	8'900
DB0758	11	765	53	659	22	20	60	54	9'000
DB0759	11	766	60	646	28	20	60	52.6	9'200
DB0760	11	766	53	660	22	20	60	54	9'100
DB0761	11	774	57	660	22	19	75	51	9'200
DB0762	11	774	57	660	22	22	75	51	8'960
DB0763	11	780	60	660	28	22	60	54	9'250
DB0764	11	780	60	660	22	20	60	54	9'200
DB0765	11	780	60	660	28	20	60	54	9'450
DB0766	11	800	52	696	22	22	78	54	9'460
DB0767	11	800	60	680	28.4	22	70	54	9'600
DB0768	11	920	60	800	28	22	100	60	11'330
DB0769	11	930	55	820	28	22	85	65	11'600
DB0770	11	960	55	850	28	22	100	65	12'000
