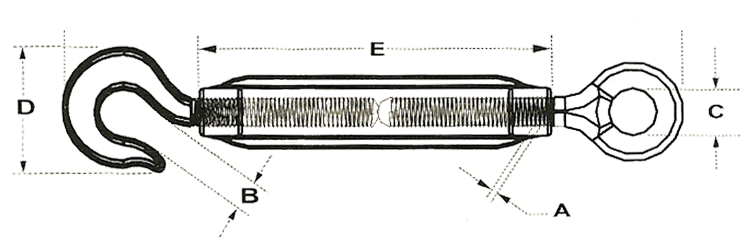

TENSOR GANCHO Y ARGOLLA

REFERENCIA	DIMENSION "A" mm	DIMENSION "B" mm	DIAMETRO "C" mm	DIMENSION "D" mm	DIMENSION "E" mm	DIMENSION MINIMA "F" mm	DIMENSION MAXIMO "F" mm	MAXIMO LIMITE DE CARGA Kgs	PESO Kgs	NOTA
TBHE0601	M5	6	8	17	80	121	181	25	0'080
TBHE0602	M6	8	10	22	80	132	195	45	0'125
TBHE0603	M8	10	11	30	105	170	251	95	0'200
TBHE0604	M10	12.5	14	36	125	204	296	140	0'300
TBHE0605	M11	12.5	15	36	135	221	320	165	0'400
TBHE0606	M12	17.5	17	56	140	244	350	300	0'500
TBHE0607	M14	21	18	66	170	284	414	420	0'600
TBHE0608	M16	24	23	77	190	322	475	570	0'700
TBHE0609	M18	27	28	85	205	373	517	700	0'800
TBHE0610	M20	30	28	95	220	391	555	900	0'900
TBHE0611	M22	34	34	106	240	433	612	1100	1'000
TBHE0612	M24	36	36	114	260	470	662	1300	1'100
