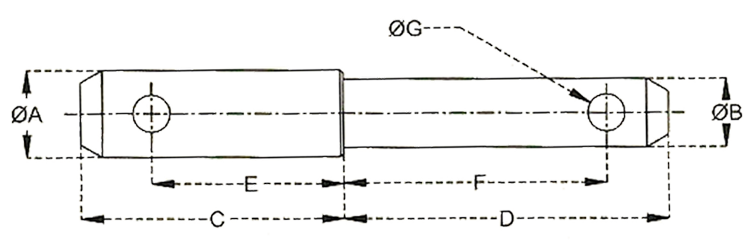

PERNO DOBLE PARA SOLDAR

REFERENCIA	DIAMETRO A mm	DIAMETRO B mm	DIMENSION C mm	DIMENSION D mm	DIMENSION E mm	DIAMETRO F mm	DIMENSION G mm	PESO Kgs	NOTA
IMP0821	28	22	62.5	84.5	47	70.5	12	0'510
IMP0822	28	22	76.5	104.5	60	88	12	0'640
IMP0823	28	22	85	105	62	85	12	0'666
IMP0824	28	22	103	78	87.3	60	12	0'686
IMP0825	28	22	120	56	92	39	12	0'621
IMP0826	28.6	22	76	105	60	87.3	12	0'650
IMP0827	34	28	61	80	43.5	62	12	0'770
