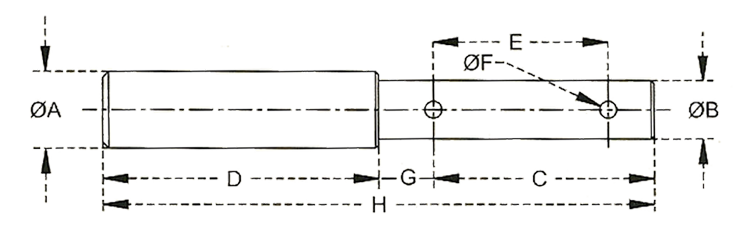

BULON DE ATAQUE

REFERENCIA	DIAMETRO A mm	DIAMETRO B mm	DIMENSION C mm	DIMENSION D mm	DIMENSION E mm	DIAMETRO F mm	DIMENSION G mm	DIMENSION H mm	PESO Kgs	NOTA
IMP0801	25	19	80	80	53	5	18	160	0'480
IMP0802	19	16	82	74	55	5	16.5	156	0'290
IMP0803	22	16	88	80	68	5	12	168	0'370
IMP0804	25	19	81	85	53	5	18	166	0'510
IMP0805	25	19	90	90	57	5	18	180	0'535
IMP0806	28	22	90	90	57	5	18	180	0'690
IMP0807	28	22	85	90	50	6	16.5	75	0'550
IMP0808	28	22	90	90	61	6	16.5	180	0'510
IMP0809	32	25	95	83	62	6.5	18	178	0'870
IMP0810	32	25	92	80	55	6.5	22	172	0'840
